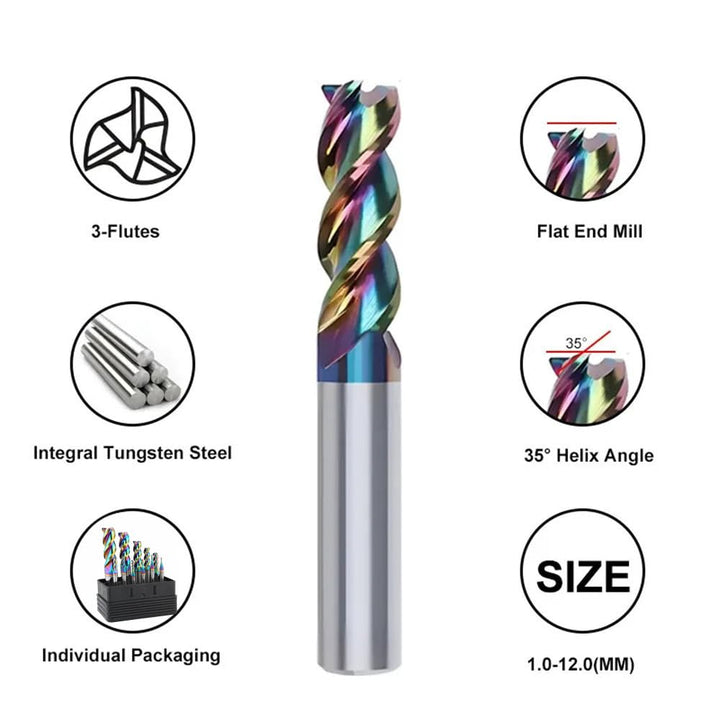

Carbide Square End Mill HRC60 Double Edge 3 Flute DLC Coating Tungsten Steel for Aluminum Wood Endmills HRC60 1.0-12.0 Series

Carbide Square End Mill HRC60 Double Edge 3 Flute DLC Coating Tungsten Steel for Aluminum Wood Endmills HRC60 1.0-12.0 Series

• High-Performance: Carbide square endmill with double edges and 3 flutes, coated with DLC for superior hardness (HRC60) and heat resistance. Durable Construction: Made from premium tungsten steel for long-lasting sharpness and edge retention.
• Precise Cutting: Color-ring design ensures easy identification and precise depth control during milling operations. Working Conditions: Finshing/Semi-finshing/Roughing.NC machining/CNC machining.
• Efficient Chip Removal: Flute geometry optimized for efficient chip evacuation and improved surface finish. Coating:TiAiN (Grain size 0.7um, Co10%, Flexural strength 3320N/mm² .high aluminum content provides excellent hot hardness and oxidation resistance.
• Versatile Application: Suitable for milling aluminum, wood, and other non-ferrous materials with exceptional cutting performance.

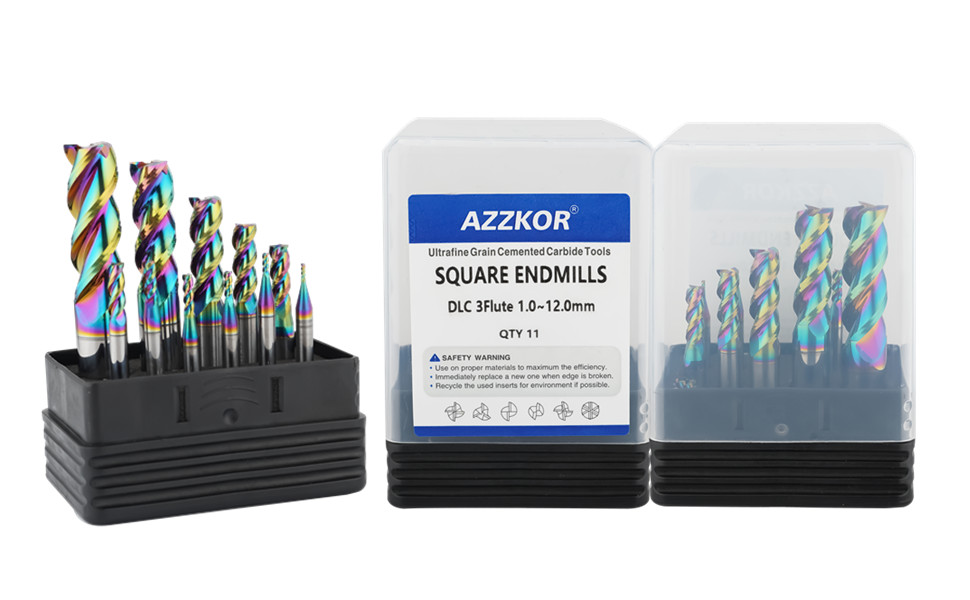

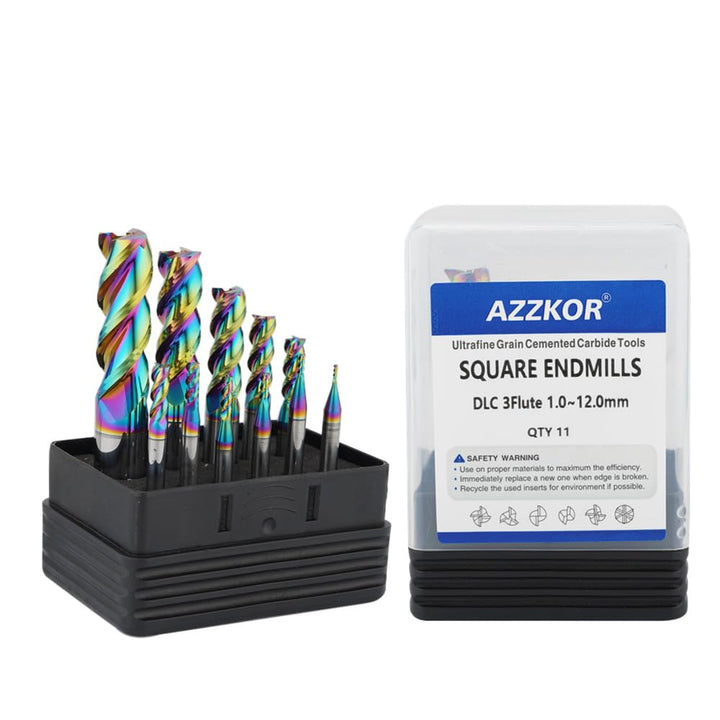

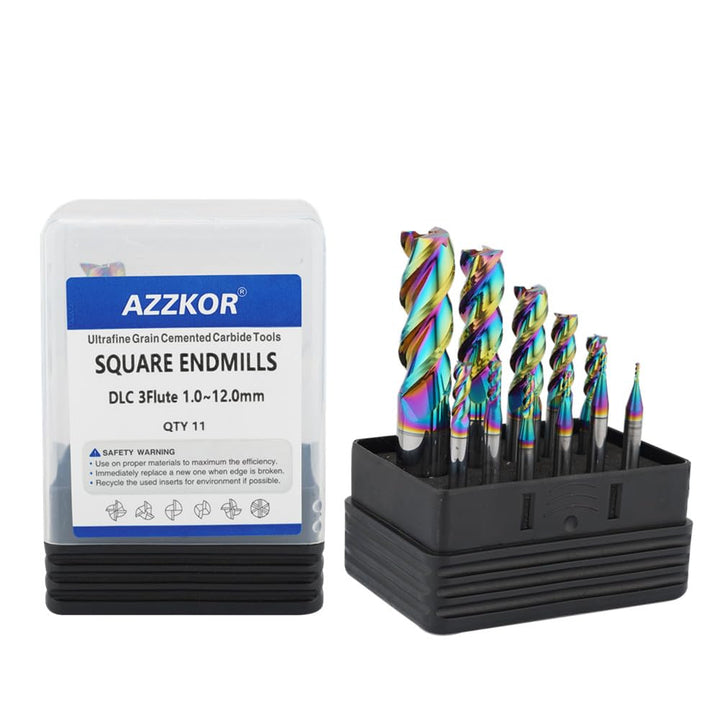

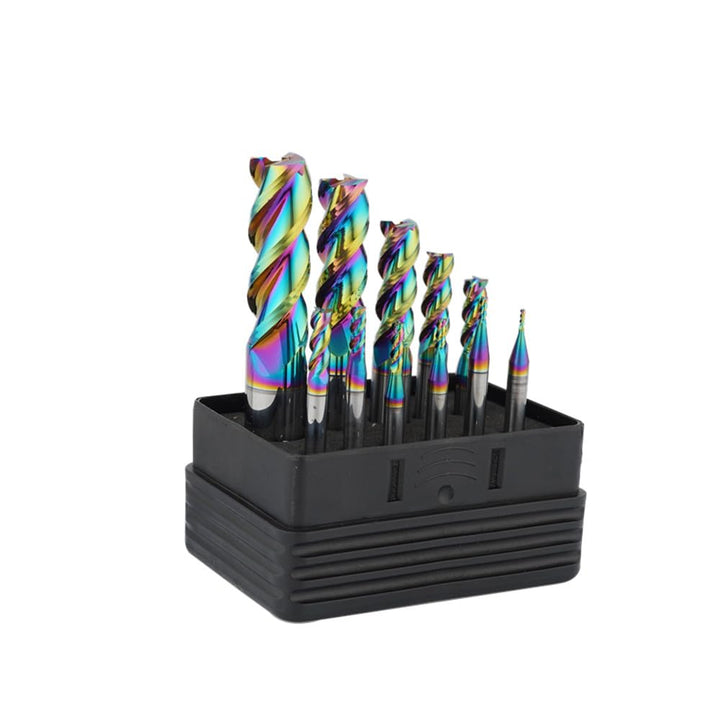

Product Package

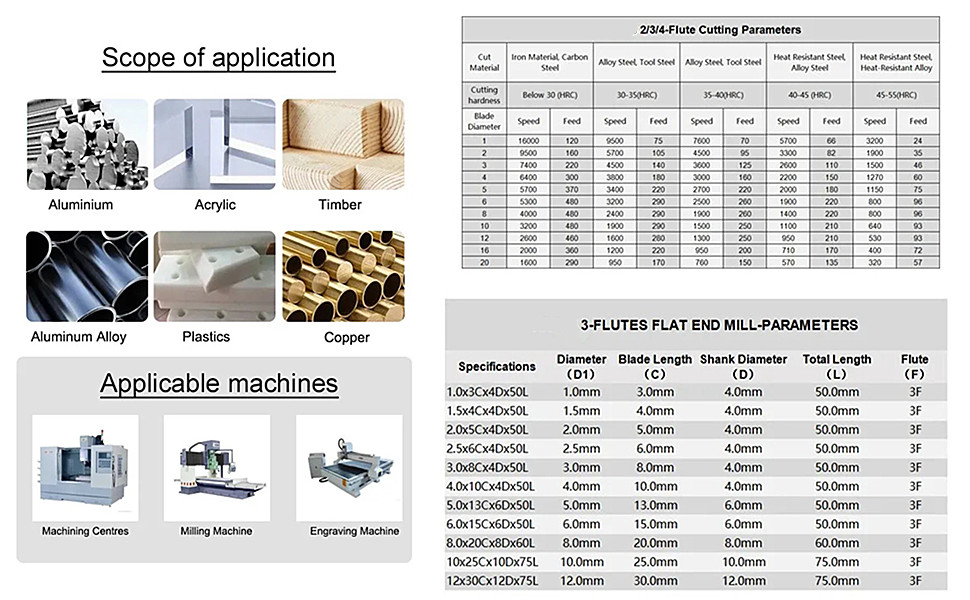

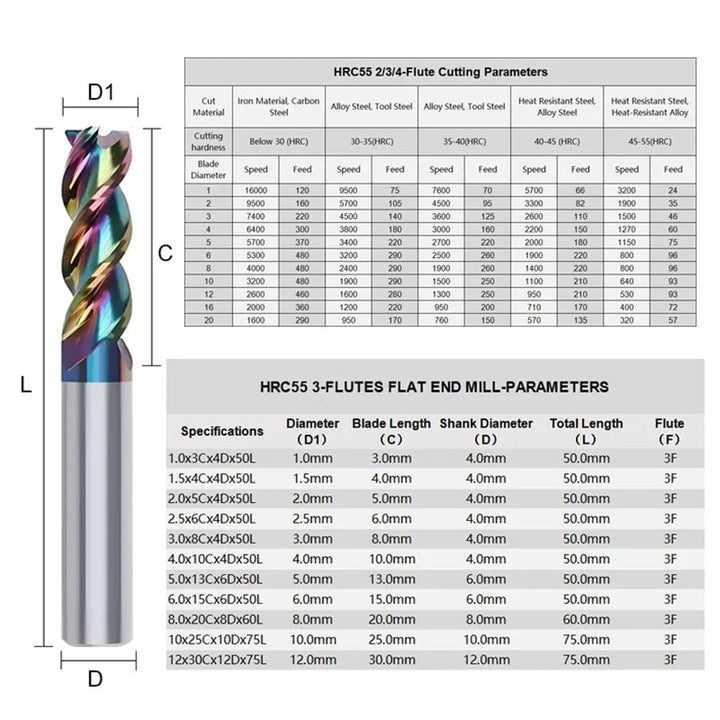

Processing Parameter Table

When using this milling cutter for the first time. Use 50% of the above data as the feed rate for trial cutting. After the cutting condition stabilizes, increase the cutting speed and feed rate one by one.

Please use high-precision, high rigidity, and dynamic balance to obtain the chuck assembly. When the milling cutter deflection accuracy exceeds 0.01 mm, please improve and cut again.
